The CONTRACK plate with the equalization device is a technological element enabling the compensation of stresses in the track, ensuring its stability and operational safety.
The solution integrates the construction and regulatory functions in one prefabricated module.
About the product
Prefabricated plate with equalization device
The CONTRACK levelling device plate is designed to operate in places where the track is subject to natural length changes resulting from temperature and operational loads.
Instead of solving this problem solely at the assembly stage, this element is prepared as part of a system that allows these phenomena to be controlled in a predictable and sustainable manner.
This is particularly important in modern track systems, where the stability and continuity of infrastructure operation are crucial.
design
Dedicated design

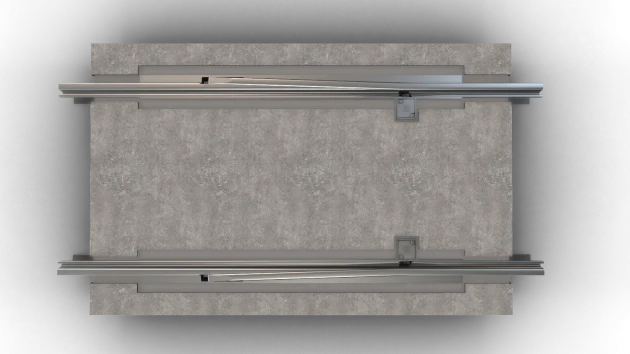

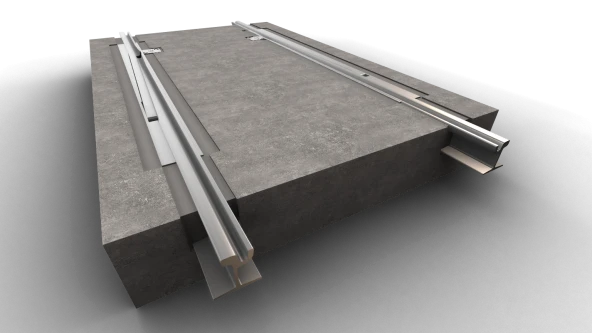

The prefabricated slab combines a reinforced concrete structure with an integrated compensation device, enabling controlled compensation of track displacements:
- prepared for installation in the track system
- enables compensation for elongations
- adaptation to the conditions of a specific investment
The design ensures the stability of the track while maintaining its necessary "operation" during operation.
The dimensions depend on the compensating device used, in particular the displacement value of the basic elements (working range) and the design requirements.
The leveling devices are mounted in the slab's rail channels using leveling washers, allowing them to be aligned with the designed grade line. The slabs are standardly designed for tracks with a typical rail spacing of 1435 mm and 1000 mm, and their minimum width is 2200 mm. Other track spacings are also available.
Advantages of the product
The use of a plate with an equalizing device allows:
- controlled compensation of track elongations and stresses
- increasing the security and stability of infrastructure
- reducing the risk of damage resulting from track operation
- integration of the regulatory function with the prefabricated structure
- compatibility with the CONTRACK system
- organizing the design and implementation process
Location
Application and integration
Plates with a compensation device are used in places requiring compensation for track elongation:
- sections of tracks exposed to large temperature changes
- longer sections of track with limited freedom of operation
- transitions between different types of track structures
- critical infrastructure points requiring stabilization of track operation
The solution integrates with the CONTRACK system, ensuring its functional continuity.
Durability and quality
Durability and initial quality
Prefabrication and the use of proven material solutions (including technologies supported by SIKA) ensure high durability and operational reliability.
The disc is:
- resistant to dynamic loads
- adapted for long-term use
- designed with stability of parameters over time in mind
This translates into reduced maintenance needs and greater reliability of the entire track system.
Role
Application in CONTRACK technology
The plate with the equalization device is an element ensuring the proper operation of the track over a long period of operation.
It is an integral part of the CONTRACK technology, which not only simplifies the implementation of the investment, but also organizes its functioning over time.
