Tram infrastructure
Prefabrication of tram arches
CONTRACK prefabricated tram arches are an element of comprehensive infrastructure construction technology, designed to implement the most geometrically demanding track sections.
About the product
Large-size tram arches

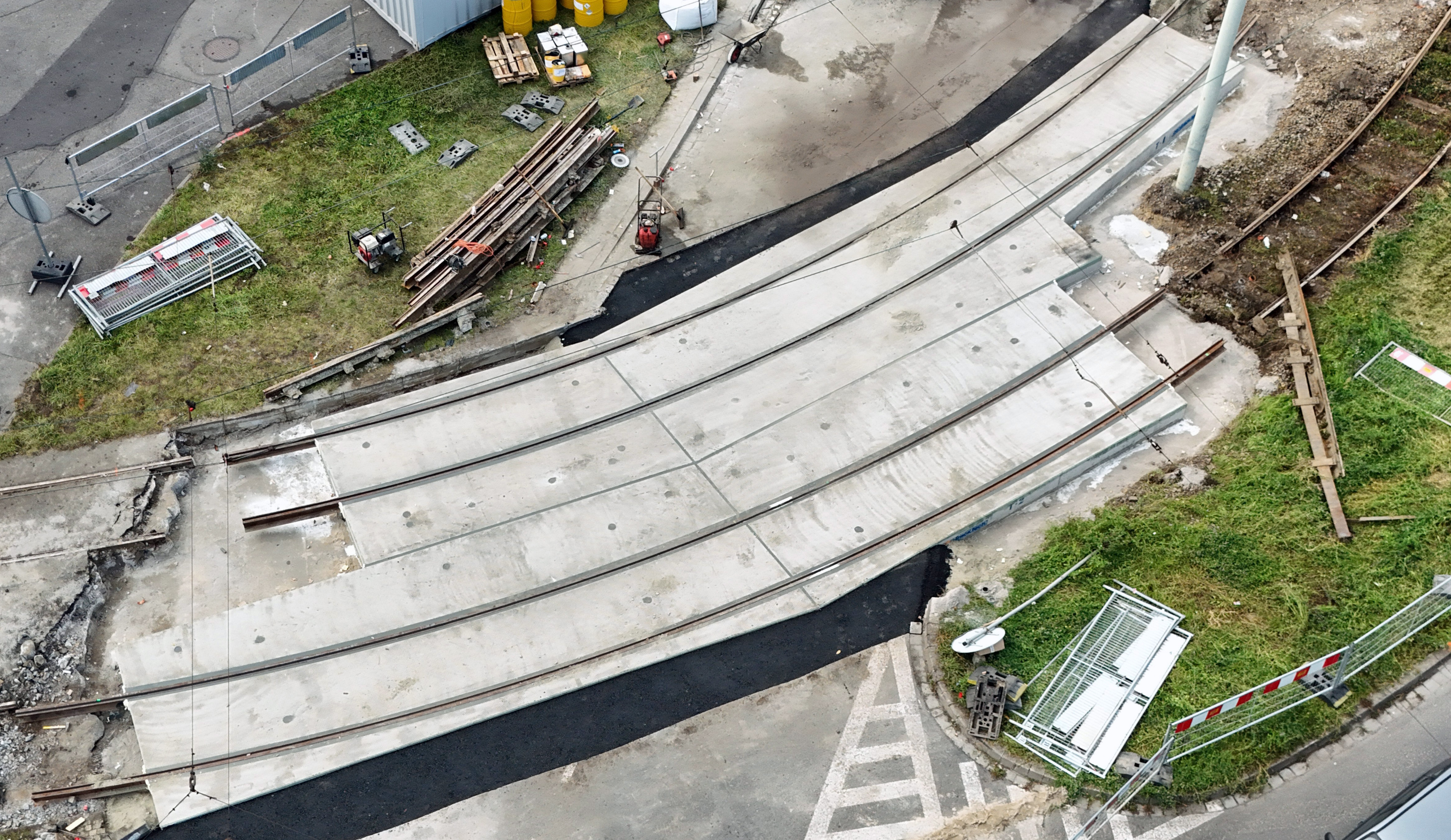

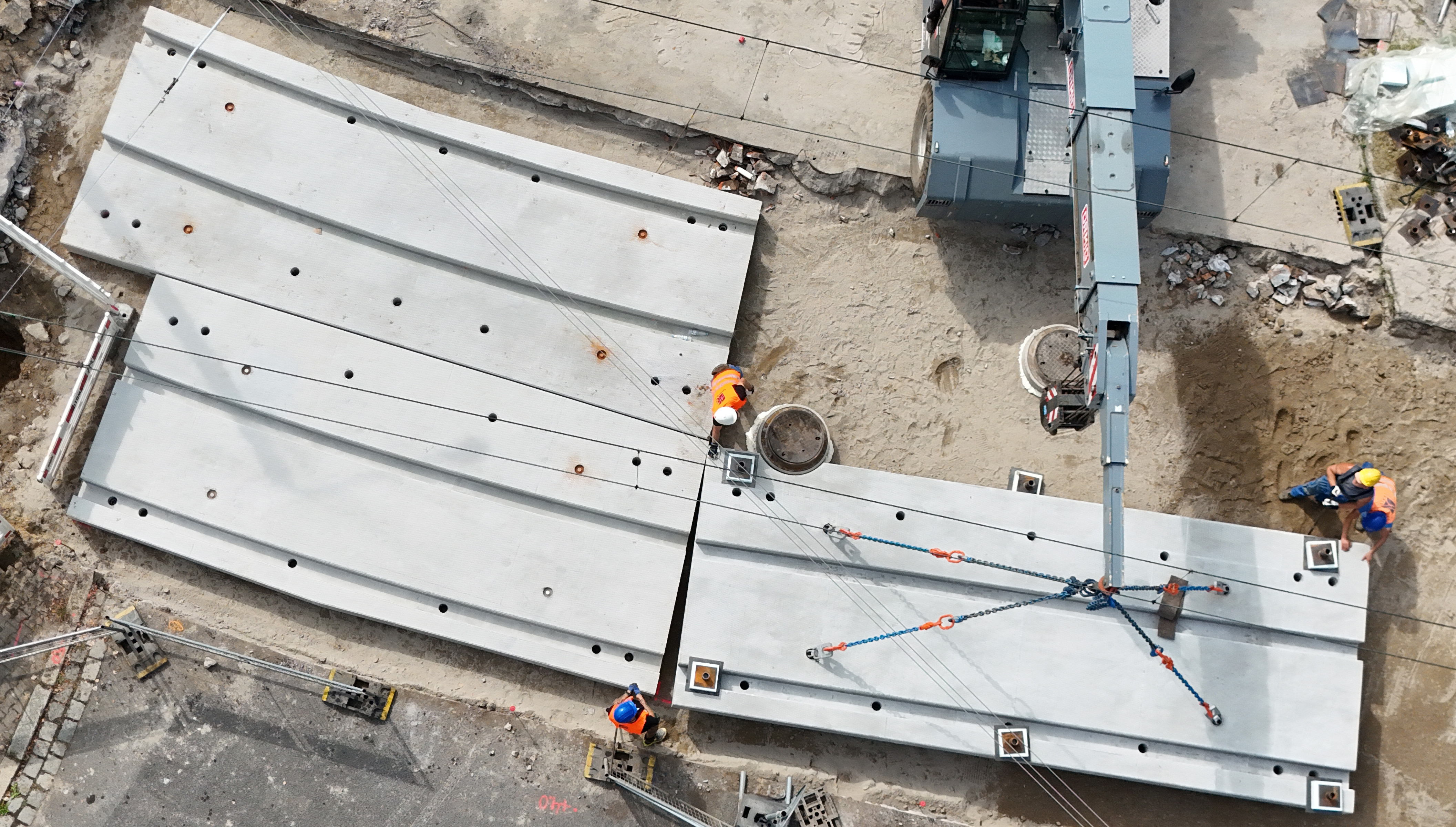

CONTRACK prefabricated tram arches are ready-made track elements prepared under controlled production conditions, delivered to the investment site as a coherent system for integration.
Unlike traditional methods, where the arch geometry is shaped directly on site, here the key parameters are reproduced with high accuracy already at the production stage.
This is particularly important in curves, where even small deviations affect driving comfort, infrastructure wear and maintenance costs.
Design
dedicated design
CONTRACK prefabricated arches are based on reinforced concrete slabs adapted
to the specific track geometry and integrated with the track system.
The design eliminates randomness and enables:
- production of prefabricated elements reflecting the exact course of the arch
- precise mounting of rails and fastening elements
- adaptation to different arc radii and local conditions
- cant design
- use of lubricators in accordance with design assumptions
- compatibility with the prefabrication technology system throughout the entire section
- adapted to the arch - the maximum length of the plate is 6 m.
Maximum dimensions of prefabricated slabs:
| Thickness | Width | Length | Weight | |
| For slabs with traditional, composite and hybrid reinforcement | 0,4 m | 4,5 m | 7,5 m | 19 t |
| For slabs with traditional, composite and hybrid reinforcement, as well as pre-stressed slabs | 0,4 m | 4 m | 16,5 m | 38 t |
Advantages of the product
CONTRACK prefabricated tram arches enable
- high precision of arc geometry mapping
- reducing execution errors in the most demanding sections
- improving ride comfort and track stability
- reducing wear and tear of track elements and infrastructure
- shortening the construction time of key points of the tram and road infrastructure
- orderliness and predictability of work execution
- compatibility with the CONTRACK system throughout the entire investment
Modernization
Modernization of tram arches
CONTRACK precast tram arches are ideal for modernizing existing infrastructure, where maintaining geometry and minimizing impact on the surrounding area is crucial. Furthermore, CONTRACK technology enables the safe replacement of the steel portion of the tram arch structure without damaging the concrete arch surface, thus extending the lifespan of the precast monolith and accelerating modernization work.
Thanks to prefabrication it is possible to:
- precise restoration or improvement of existing arches
- reducing work time in demanding locations
- reducing the impact of investments on tram and road traffic
durability and quality
durability and initial quality
Tram arches are among the most heavily loaded track elements, so their quality is crucial. CONTRACK enables complete control of the production and surface parameters, which improves its initial quality.
Prefabrication under controlled conditions and the use of proven material solutions (including technologies supported by SIKA) ensure:
- high resistance to dynamic and lateral forces
- long-term geometric stability
- limiting track and surface degradation
This translates into lower maintenance needs and greater infrastructure reliability.
Location
Prefabrication for increased technical requirements
CONTRACK prefabricated tram arches are used wherever track geometry is crucial for the functioning of the infrastructure:
- arches in city centers and densely built-up areas
- sections with small arc radii
- places with heavy tram traffic
- areas requiring high precision and durability of the track
- modernized infrastructure fragments with increased technical requirements
This solution is particularly effective where execution errors have the greatest consequences.
