INTERSYSTEM INSERT MODULE
The CONTRACK inter-system insert module is a technology element enabling safe and durable connection of various track systems and installation technologies within a single investment.
The solution eliminates problematic infrastructure interfaces, ensuring structural and operational consistency of the entire system.
About the product
Intersystem Insert
CONTRACK inter-system inserts are designed to integrate track sections constructed using different technologies or modernized in stages.
Instead of creating a point of contact "on site," the module is designed as a well-thought-out system element that ensures a seamless transition between various design solutions. This element enables the creation of a welded connection between the turnout's steel surface and the main track surface.
This is particularly important in investments where new sections of infrastructure connect with existing track systems.
Design
Dedicated design
The inter-system insert module is a prefabricated structural element adapted to the conditions of a specific investment and the type of systems being connected.
- individually designed for geometry and technical conditions
- integrated with the track system and supporting structure
- adapted to various construction technologies (e.g. prefabrication – traditional track)
- compatible with CONTRACK technology on the section covered by the investment
The design ensures geometric and functional continuity of the track.
To enable adequate access and comfortable work of the welding team, the length of the intersystem insert is minimum 1 m, maximum 8 m.

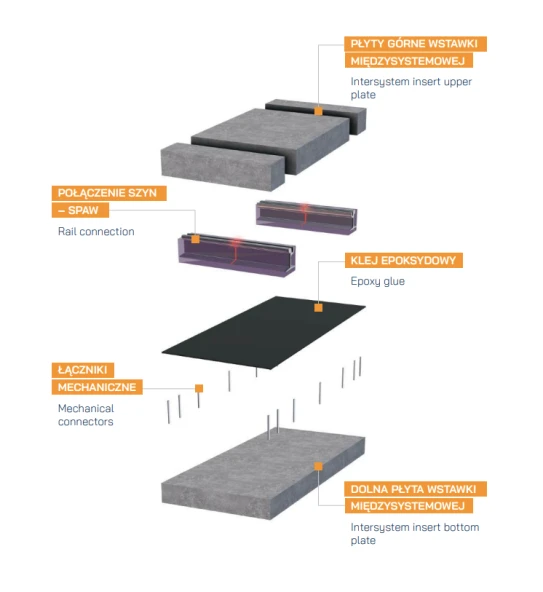

All elements of the insert are connected in a dual manner – mechanically (steel anchors) and chemically (with a carefully selected anchoring material). The assembled inter-system insert is then integrated with the steel track section using a polyurethane material for continuous, elastic fastening of the rails.
The inter-system insert can be an element dividing the track into established maintenance/traffic management zones, thus ensuring the possibility of carrying out track work in stages - without the need to close the entire track section.
Advantages of the product
The use of an intersystem insert is:
- eliminating problematic points of contact between different technologies
- ensuring a smooth transition between infrastructure sections
- reducing the risk of execution errors in critical places
- improving the durability and stability of the track
- organizing the integration process of new and existing solutions
- full compatibility with the CONTRACK system
Application location
Application and integration
Interconnection modules are used wherever it is necessary to combine different technologies or investment implementation stages:
- connecting new sections with existing infrastructure
- investments implemented in stages
- transitions between different types of track structures
- piecemeal modernizations
The solution enables investments to be carried out without the need to standardize the entire infrastructure at one time.
Durability and quality
Durability and initial quality
Precise design and prefabrication of the module help reduce the risks associated with the operation of contact points.
The use of proven material technologies (including solutions supported by SIKA) ensures:
- high resistance to dynamic loads
- durability of the structure in a place particularly exposed to wear
- long-term geometric stability
This translates into greater reliability of the entire track system.
The role of the product
Role in CONTRACK technology
The interconnect module is a key element ensuring technology continuity in practice. It allows for the integration of various solutions into a single, coherent system—without creating infrastructure weaknesses and without complicating the investment process.
